Product Description

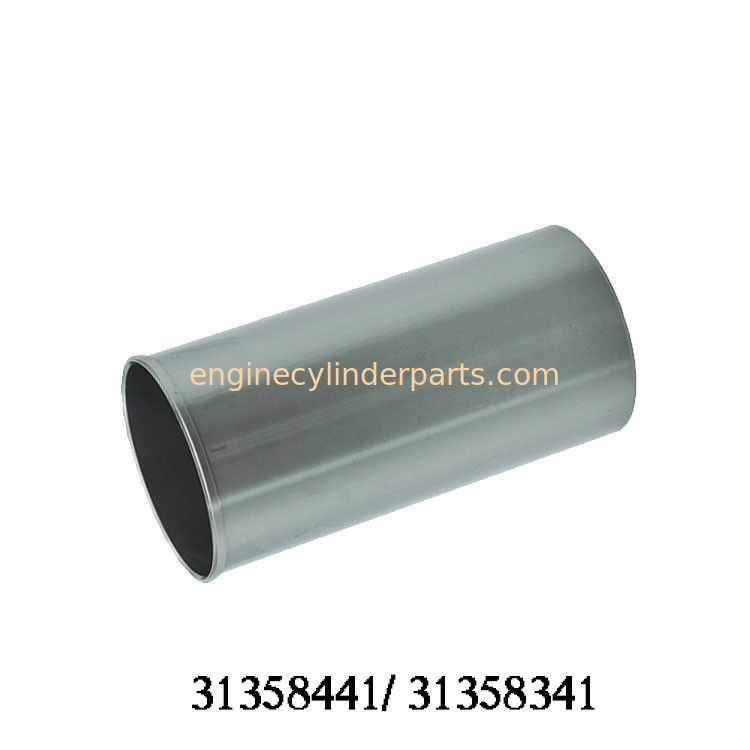

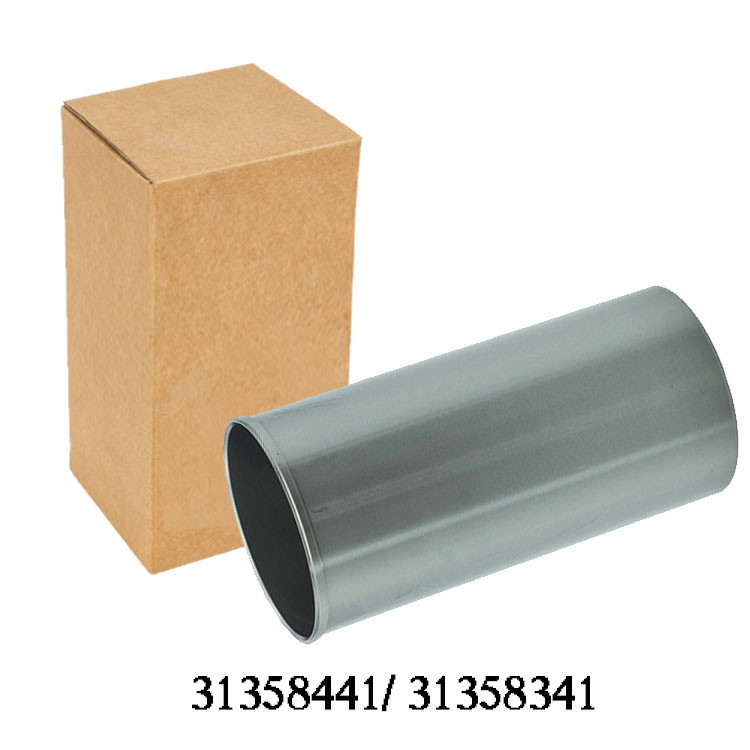

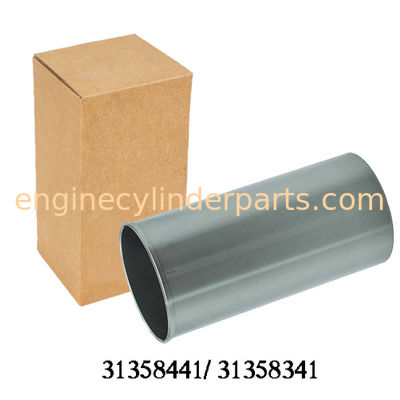

A4.236 Cylinder Liner 31358393 31358441 Fit For Engine Mf265
We manufacture the cylinder liner sleeve from 55mm to 170mm, both Wet cylinder sleeve and Dry cylinder
Sleeves, With exact dimension, accuracy,standards and optimum tolerance.
We can OEM Your Brand, Or produce according to drawings and samples.
QUICK DETAILS
Name: Cylinder Liner
Engine: Perkins diesel engine A4.212/A4.236/ 6.354/T6.354
Bore size: 98.48mm
Total length: 227.4mm
OEM:
31358441/ 31358341
31358394/ 31358441
736507M3/ 744948M1
744948Z1/ 744948
Description: Semi finished dry cylinder sleeves OR Full finished liner sleeves
Moq: 400pcs
Lead time: 40 days
Payment: T/T, L/C, Trade assurance
OTHER MODELS
| PERKINS LINER SLEEVES |
| AJL096 |
A3.152/4.203/AD4.203 |
31358323
734179M1/ 734179 |
91.49x93.66x215.9,Collar 3.808mm |
216 |
| AJL097 |
A3.152/4.203/AD4.203 |
31358322/ 1434175M1
31358345/ 734175M1
739043M1/ 739043
|
91.49x94.98x215.9,Collar 3.86mm |
216 |
| AJL098 |
A4.212/A4.236/
6.354/T6.354 |
31358361/ 31358349
31358393/ 744131M1
744131 |
98.48 |
227.4 |
| AJL099 |
A4.212/A4.236 |
31358341/ 31358394
31358441/ 736507M3
744948M1/ 744948Z1 |
98.48 |
227.4 |
| AJL100 |
A4.236/T4.236 |
3135X031/ 3637031M1
3637331M1/ 3637331Z1
3638796M91 |
98.48 |
227.4 |
| AJL101 |
A4.212/A4.236/
6.354/T6.354 |
31358441/ 31358341
31358394/ 31358441
736507M3/ 744948M1
744948Z1/ 744948 |
98.48 |
227.4 |
| AJL102 |
A4.236/T6.354 |
3135X032/ 3637032M1
3637332M1/ 3637332Z1
3637332 |
Dia 98.501xTL 226.44 |
SF |
| AJL103 |
T4.40/T6.60 |
3135X063/043WV39 |
Dia99.162xDia104.3xDia107.4x227.5 |
DRY |
| AJL104 |
T4.40/T6.60 |
3135X041/ 748215M1 |
Dia100xDia104.3xDia107.5x227.4 |
DRY |
| AJL105 |
T4.40/T6.60 |
3135X042/ 748216M1
3158X042/ 748216/043WV20 |
Dia100xDia104.2xDia107.5x226.7 |
SF |
| AJL106 |
T4.40/T6.60 |
3135X062/043WV30 |
φ98.5×φ103.2×φ106.4×227 |
DRY |
| AJL107 |
A4.248/A4.248.S |
31358346/ 740571M1 |
101.06 |
TL 227.447 |
| AJL108 |
A4.248 |
31358343/ 737214M1 |
101.06 |
227.3 |
| AJL109 |
A4.248/A4.248.S |
31358352/ 742466M1
742466Z1/ 742466 |
101.06 |
227.3 |
| AJL110 |
A4.248.S |
3135X033/ 3637033M1
3637333M1/ 3637033M91
3637333 |
101.092 |
226.4 |
| AJL111 |
A4.248.S |
3135X034/ 3637034M1
3637334M1/ 3637334 |
101.092 |
226.4 |
| AJL112 |
A4.318 |
31358533/ 745990M1 |
114.4 |
230.5 |
| AJL113 |
A4.318 |
31358534/ 745991M1 |
114.4 |
230.5 |
| AJL114 |
3.152 |
31358384 |
90.7 |
216.1 |
| AJL115 |
4.236/6.354 |
31358403 / 745-340-M1 |
97.61 |
227.28 |
| AJL116 |
4.236/6.354 |
31358399 |
97.61 |
227.28 |
| AJL117 |
4.236/6.354 |
31358395 / 744-132-M1 |
98.247 |
227.28 |
| AJL118 |
T4.236/4.238 |
|
98.48 |
228.8 |
| AJL119 |
4.236/6.354 |
31358396 / 745-245-M1 |
98.247 |
227.28 |
| AJL120 |
4.236 |
3135X035 |
98.501 |
226.44 |
| AJL121 |
4.236/6.354 |
31358397 / 745-246-M1 |
98.501 |
227.28 |
| AJL122 |
4.236/6.354 |
31358398 / |
98.501 |
227.28 |
| AJL123 |
4.40/6.60 |
3135X044 |
99.7 |
226.44 |
| AJL124 |
T4.40/T6.60 |
3135X061 |
99.825 |
227.477 |
| AJL125 |
4.40 / 6.60 |
3135X045 |
100.038 |
226.44 |
| AJL126 |
T4.40/T6.60/
T4.401/T6.601 |
3135X065 |
100.038 |
227.477 |
| AJL127 |
V8.640 |
31358531 / 745-543-M1 |
116.71 |
226.16 |
| AJL128 |
V8.640 |
3135X021/746-675-MI |
116.8 |
225.53 |
| AJL129 |
V8.640 |
31358532 / 745-544-M1 |
117.627 |
226.16 |
| AJL130 |
V8.640 |
3135X022 / 746-676-MI |
117.64 |
225.53 |
ABOUT US
Cylinder Liner sleeve is our key products. We are able to produce both Wet cylinder liner and Dry cylinder
liner. The material include cast iron and steel. The bore size from 55mm to 170mm. The applications inclu
-de: compressors, generators, cars, trucks, heavy duty machines, and marine engines.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral Carton with pallet or non-fumigation plywoodcase.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the bala-nce.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample
cost and the courier cost.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they
come from.
Professional Sales online to answer your question timely within 12 hours.
Please don't hesitate to contact us for more information about ENGINE AND SPARES.
Warmly welcome you to visit our ofice and factory!
Hope we can set up mutually benefically business relationship.
