Perkins A4.236 T6.354 Cast Iron Cylinder Sleeve 3135X032 3637032M1 3637332M1

Product Details:
Place of Origin: CHINA
Brand Name: OEM
Certification: ISO
Model Number: AJL102
Payment & Shipping Terms:
Minimum Order Quantity: 400PCS
Price: USD1-8 Per Piece
Packaging Details: CARTON BOX
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 50000PCS per Month

Detail Information

Material: Cast Iron OEM: 3135X032/ 3637032M1 3637332M1/ 3637332Z1 3637332
Engine Make: Perkins Engine Code: A4.236/T6.354
Size: Dia 98.501xTL 226.44 Warranty: 1 Years
Name: Cylinder Liner Sleeve Type: Dry Cast Iron Cylinder Liner
High Light:

cast iron cylinder sleeve Perkins A4.236




cast iron cylinder sleeve Perkins T6.354

Product Description

Cast Iron Cylinder Sleeve For Perkins A4.236 T6.354 3135X032/ 3637032M1 3637332M1
We manufacture the cylinder liner sleeve from 55mm to 170mm, both Wet cylinder sleeve and Dry cylinder
Sleeves, With exact dimension, accuracy,standards and optimum tolerance.
We can OEM Your Brand, Or produce according to drawings and samples.
Name: Cylinder Liner
Engine: Perkins A4.236/T6.354
3135X032/ 3637032M1
3637332M1/ 3637332Z1
Bore size: Dia 98.501xTL 226.44
Description: Semi finished dry cylinder sleeves and finished dry cylinder sleeves
Moq: 400pcs
Lead time: 40 days
Payment: T/T, L/C, Trade assurance

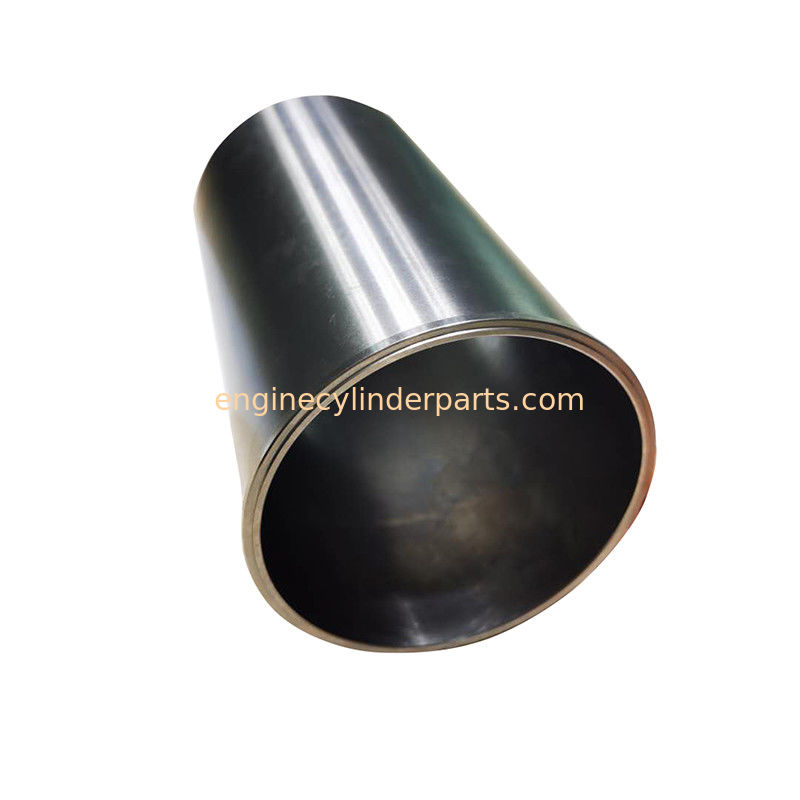

Perkins A4.236 T6.354 Cast Iron Cylinder Sleeve 3135X032 3637032M1 3637332M1 0



AJL096 A3.152/4.203/AD4.203 31358323
734179M1/ 734179
91.49x93.66x215.9,Collar 3.808mm 216
AJL097 A3.152/4.203/AD4.203 31358322/ 1434175M1
31358345/ 734175M1
739043M1/ 739043
91.49x94.98x215.9,Collar 3.86mm 216
AJL098 A4.212/A4.236/
31358361/ 31358349
31358393/ 744131M1
98.48 227.4
AJL099 A4.212/A4.236 31358341/ 31358394
31358441/ 736507M3
744948M1/ 744948Z1
98.48 227.4
AJL100 A4.236/T4.236 3135X031/ 3637031M1
3637331M1/ 3637331Z1
98.48 227.4
AJL101 A4.212/A4.236/
31358441/ 31358341
31358394/ 31358441
736507M3/ 744948M1
744948Z1/ 744948
98.48 227.4
AJL102 A4.236/T6.354 3135X032/ 3637032M1
3637332M1/ 3637332Z1
Dia 98.501xTL 226.44 SF
AJL103 T4.40/T6.60 3135X063/043WV39 Dia99.162xDia104.3xDia107.4x227.5 DRY
AJL104 T4.40/T6.60 3135X041/ 748215M1 Dia100xDia104.3xDia107.5x227.4 DRY
AJL105 T4.40/T6.60 3135X042/ 748216M1
3158X042/ 748216/043WV20
Dia100xDia104.2xDia107.5x226.7 SF
AJL106 T4.40/T6.60 3135X062/043WV30 φ98.5×φ103.2×φ106.4×227 DRY
AJL107 A4.248/A4.248.S 31358346/ 740571M1 101.06 TL 227.447
AJL108 A4.248 31358343/ 737214M1 101.06 227.3
AJL109 A4.248/A4.248.S 31358352/ 742466M1
742466Z1/ 742466
101.06 227.3
AJL110 A4.248.S 3135X033/ 3637033M1
3637333M1/ 3637033M91
101.092 226.4
AJL111 A4.248.S 3135X034/ 3637034M1
3637334M1/ 3637334
101.092 226.4
AJL112 A4.318 31358533/ 745990M1 114.4 230.5
AJL113 A4.318 31358534/ 745991M1 114.4 230.5
AJL114 3.152 31358384 90.7 216.1
AJL115 4.236/6.354 31358403 / 745-340-M1 97.61 227.28
AJL116 4.236/6.354 31358399 97.61 227.28
AJL117 4.236/6.354 31358395 / 744-132-M1 98.247 227.28
AJL118 T4.236/4.238   98.48 228.8
AJL119 4.236/6.354 31358396 / 745-245-M1 98.247 227.28
AJL120 4.236 3135X035 98.501 226.44
AJL121 4.236/6.354 31358397 / 745-246-M1 98.501 227.28
AJL122 4.236/6.354 31358398 / 98.501 227.28
AJL123 4.40/6.60 3135X044 99.7 226.44
AJL124 T4.40/T6.60 3135X061 99.825 227.477
AJL125 4.40 / 6.60 3135X045 100.038 226.44
AJL126 T4.40/T6.60/
3135X065 100.038 227.477
AJL127 V8.640 31358531 / 745-543-M1 116.71 226.16
AJL128 V8.640 3135X021/746-675-MI 116.8 225.53
AJL129 V8.640 31358532 / 745-544-M1 117.627 226.16
AJL130 V8.640 3135X022 / 746-676-MI 117.64 225.53


Cylinder Liner sleeve is our key products. We are able to produce both Wet cylinder liner and Dry cylinder

liner. The material include cast iron and steel. The bore size from 55mm to 170mm. The applications inclu

-de: compressors, generators, cars, trucks, heavy duty machines, and marine engines.

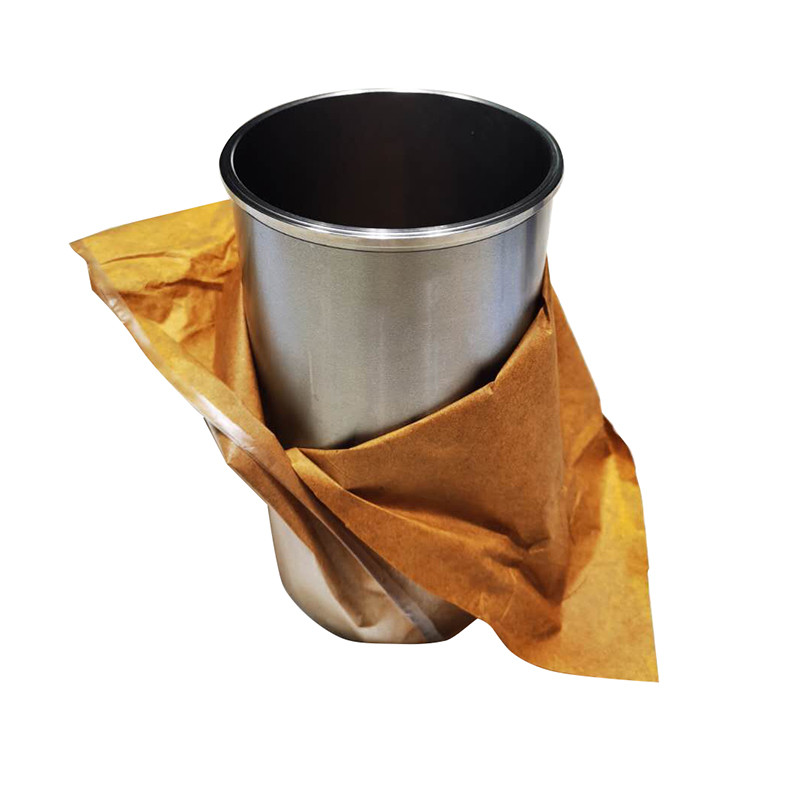

Perkins A4.236 T6.354 Cast Iron Cylinder Sleeve 3135X032 3637032M1 3637332M1 1

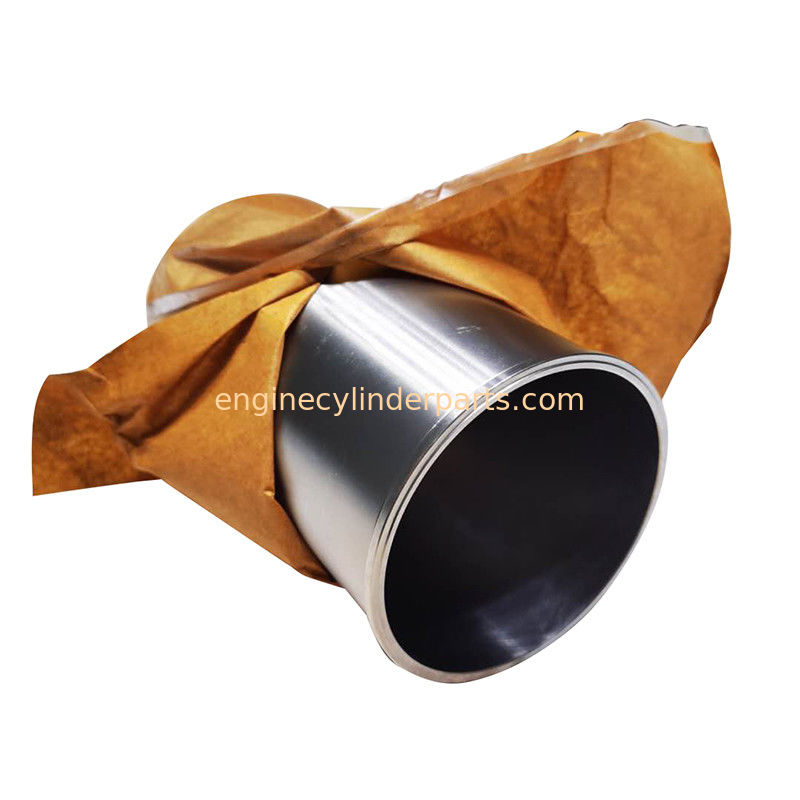

Perkins A4.236 T6.354 Cast Iron Cylinder Sleeve 3135X032 3637032M1 3637332M1 2
