Cylinder Sleeve Replacement For Yanmar 4TNV94 / 4D94

Minimum Order Quantity : 200PCS Price : USD3-USD5
Packaging Details : CARTON BOX Delivery Time : 30 days
Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal Supply Ability : 50000PCS per Month
Place of Origin: CHINA Brand Name: OEM
Certification: ISO Model Number: AJL263

Detail Information

Material: Cast Iron OEM: NS11.01111
Engine Make: YANMAR Engine Code: 4TNV94/4D94
Size: 93.0(SF)x190 94*190 Warranty: 1 Years
Name: Cylinder Liner Sleeve Type: Cast Iron Wet
High Light:

Yanmar 4D94 Cylinder Sleeve


Yanmar 4TNV94 Cylinder Sleeve


Cylinder Liner Sleeve Cast Iron

Product Description

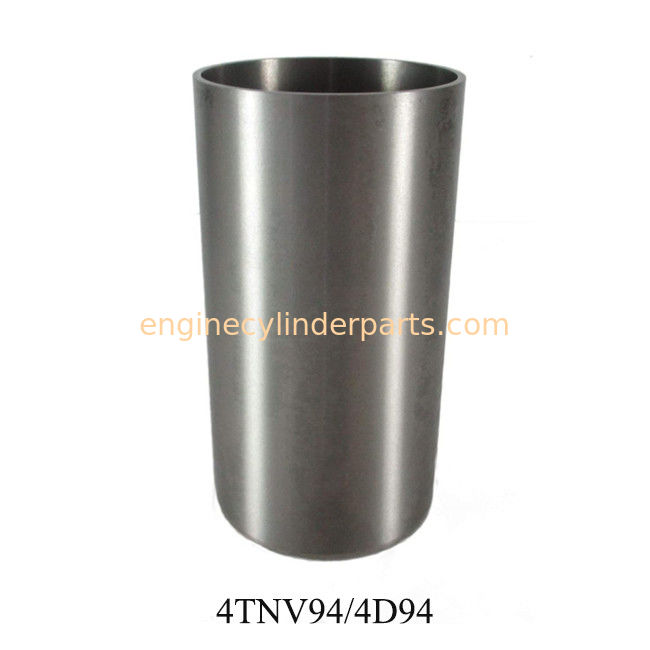

Cylinder Sleeve Replacement For Yanmar 4TNV94/4D94
We manufacture the cylinder liner sleeve from 55mm to 170mm, both Wet cylinder sleeve and Dry cylinder
Sleeves, With exact dimension, accuracy,standards and optimum tolerance.
We can OEM Your Brand, Or produce according to drawings and samples.
Name: Cylinder Liner
Engine: For Yanmark 4TNV94/4D94
Bore size: 94X190MM
oem: NS11.01111
SEMI FINISHED Cylinder liner
Minium order qty: 200pcs
Cylinder Sleeve Replacement For Yanmar 4TNV94 / 4D94 0Cylinder Sleeve Replacement For Yanmar 4TNV94 / 4D94 1
Model Engine OEM       Size Notes
AJL258 4D84 NS75.01111 84x88x93x150x2.5 sf
AJL259 3TNE78 105400-01100 78x81.5x150 sf
AJL261 4TNV88 105200-01100 87.0(SF)x182 sf
AJL262 4TNV92 BTD22.01111 91.0(SF)x186 sf
AJL263 4TNV94 NS11.01111 93.0(SF)x190 sf
AJL264 4TNV98 NS18.01111 97.0(SF)x187 sf
AJL265 4TNV106 106660-01100 105.0(FF)x206 ff
AJL266 TF65   78x140.3
AJL267 ET80 105400-01100 84x150.75
AJL268 TF85 105200-01100 85x154


Cylinder Liner sleeve is our key products. We are able to produce both Wet cylinder liner and Dry cylinder

liner. The material include cast iron and steel. The bore size from 55mm to 170mm. The applications inclu

-de: compressors, generators, cars, trucks, heavy duty machines, and marine engines.
