Dry Cylinder Liner Sleeve For Kubota V1505 16060-02310

Minimum Order Quantity : 200PCS Price : USD3-USD5
Packaging Details : CARTON BOX Delivery Time : 30 days
Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal Supply Ability : 50000PCS per Month
Place of Origin: CHINA Brand Name: OEM
Certification: ISO Model Number: AJT-LKB12

Detail Information

Material: Cast Iron OEM: V1505
Engine Make: KUBOTA Engine Code: 16060-02310
Size: Dia83xDia87.04xDia93x176 Warranty: 1 Years
Name: Cylinder Liner Sleeve Type: Cast Iron Wet
High Light:

Kubota V1505 Dry Cylinder Liner


16060-02310 Dry Cylinder Liner


16060-02310 Engine Cylinder Liner

Product Description

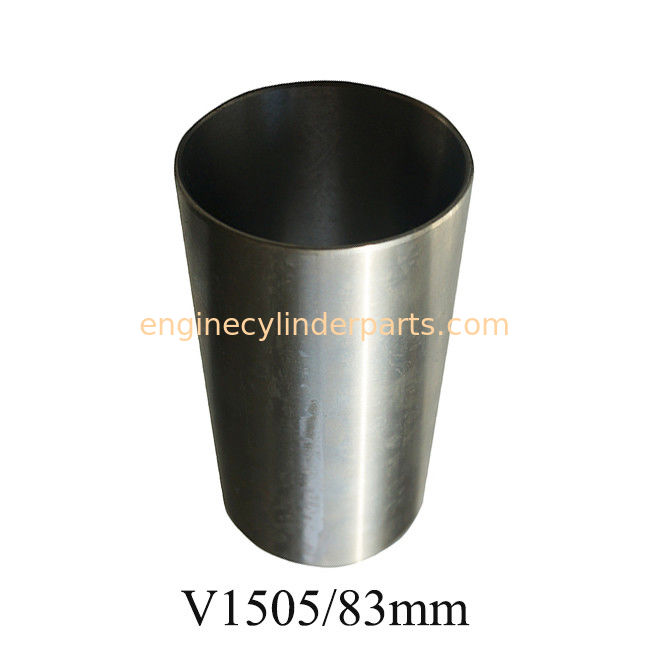

Dry Cylinder Liner Sleeve For Kubota V1505 16060-02310
We manufacture the cylinder liner sleeve from 55mm to 170mm, both Wet cylinder sleeve and Dry cylinder
Sleeves, With exact dimension, accuracy,standards and optimum tolerance.
We can OEM Your Brand, Or produce according to drawings and samples.
Name: Cylinder Liner
Engine: kubota V1505
Bore size: 83mm
OEM: 16060-02310
SEMI FINISHED Cylinder liner for kubota diesel engine
Minium order qty: 200pcs
Dry Cylinder Liner Sleeve For Kubota V1505 16060-02310 0
Model Engine OEM Size Notes
AJT-LKB05 RD75   Dia82x114x145.9mm FF
AJT-LKB22 RK125   94x158 FF
AJT-LKB10 V2203   Dia87*90.5*156 SF
AJT-LKB11 V2403   Dia87*90.5*156 SF
AJT-LKB12 V1505 16060-02310 Dia83xDia87.04xDia93x176 SF
AJT-LKB13 V1902/D1402 15521-02310 Dia85*88.5*150 SF
AJT-LKB14 V1702/D1302 15201-02310 Dia82*85.5*140 SF
AJT-LKB15 V2607 1J700-21110 Dia87*90.5*165 SF
AJT-LKB16 V3300 1C010-02310 Dia98*101.5*181.4 SF
AJT-LKB17 V3800 1J550-02310 Dia100*103.5*192 SF
AJT-LKB18 D905 16224-02310 Dia 71x Dia 76 x 145mm SF
AJT-LKB19 D1105/V1505 16060-02310 Dia 78x81.5x152 SF
AJT-LKB20 D782 16851-02310 Dia67x70.5x140 SF
AJT-LKB21 D750/ZB500 15261-02310 Dia68x71x135 SF


Cylinder Liner sleeve is our key products. We are able to produce both Wet cylinder liner and Dry cylinder

liner. The material include cast iron and steel. The bore size from 55mm to 170mm. The applications inclu

-de: compressors, generators, cars, trucks, heavy duty machines, and marine engines.


Dry Cylinder Liner Sleeve For Kubota V1505 16060-02310 1
