Product Description
OEM Diesel Engine Spares Cylinder Sleeve For Toyota 5AF 11461-15040

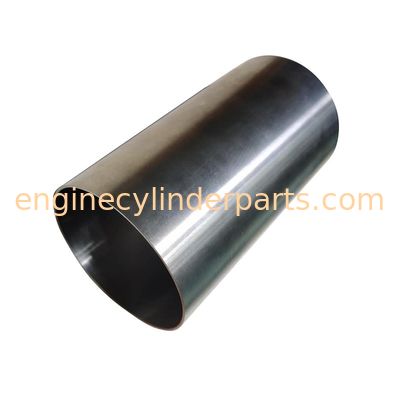

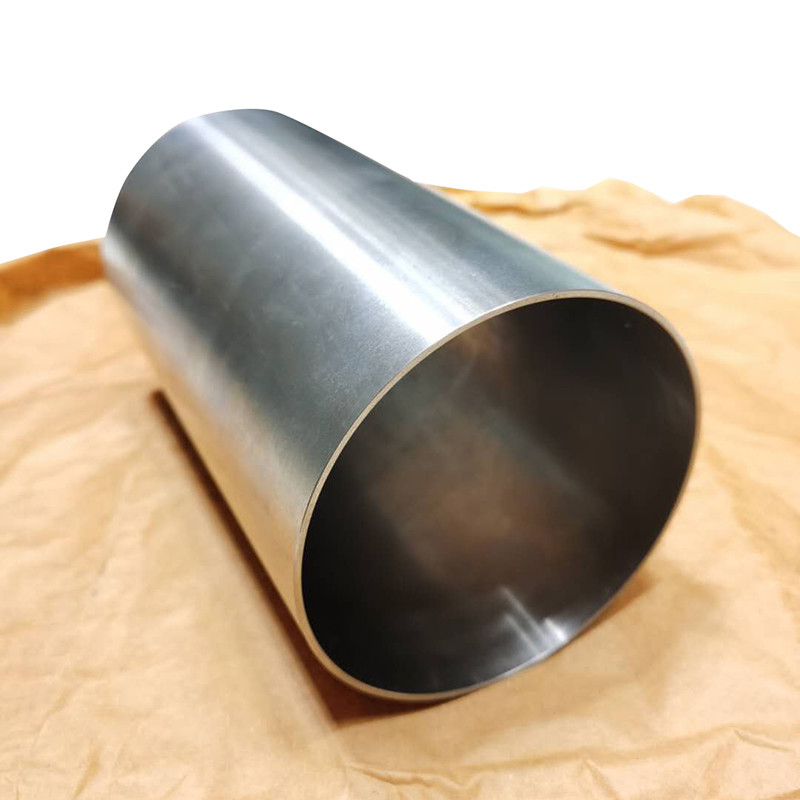

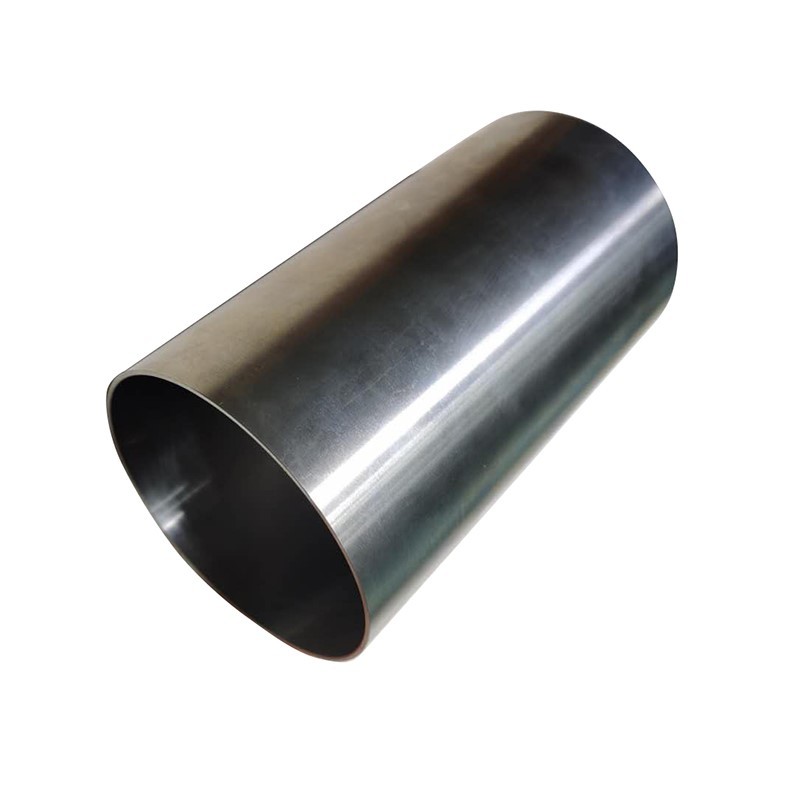

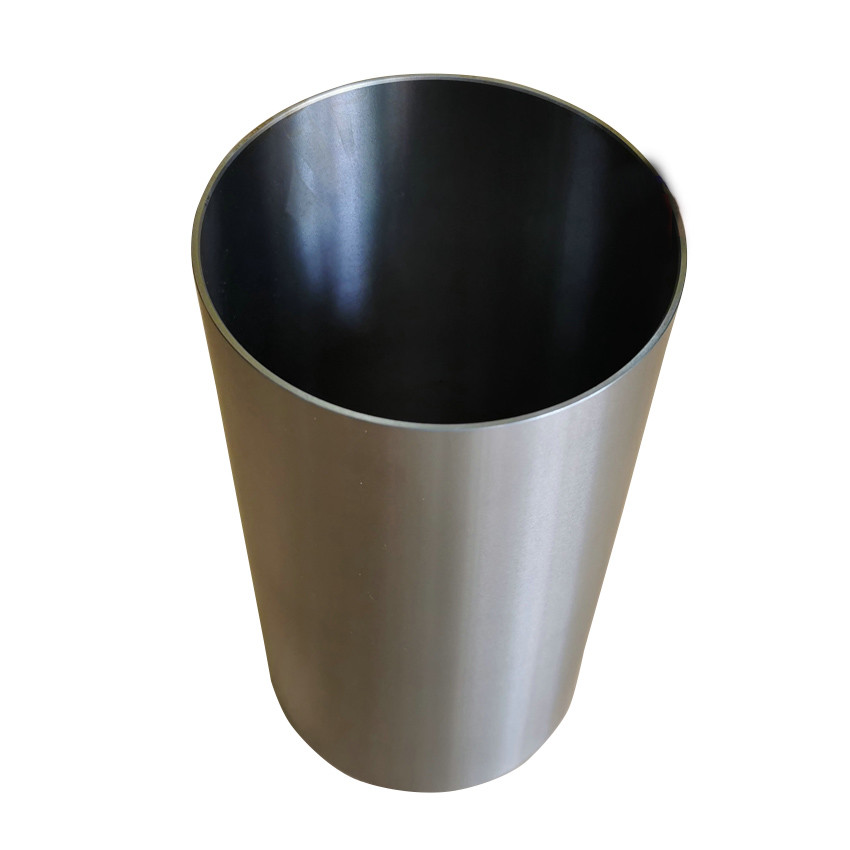

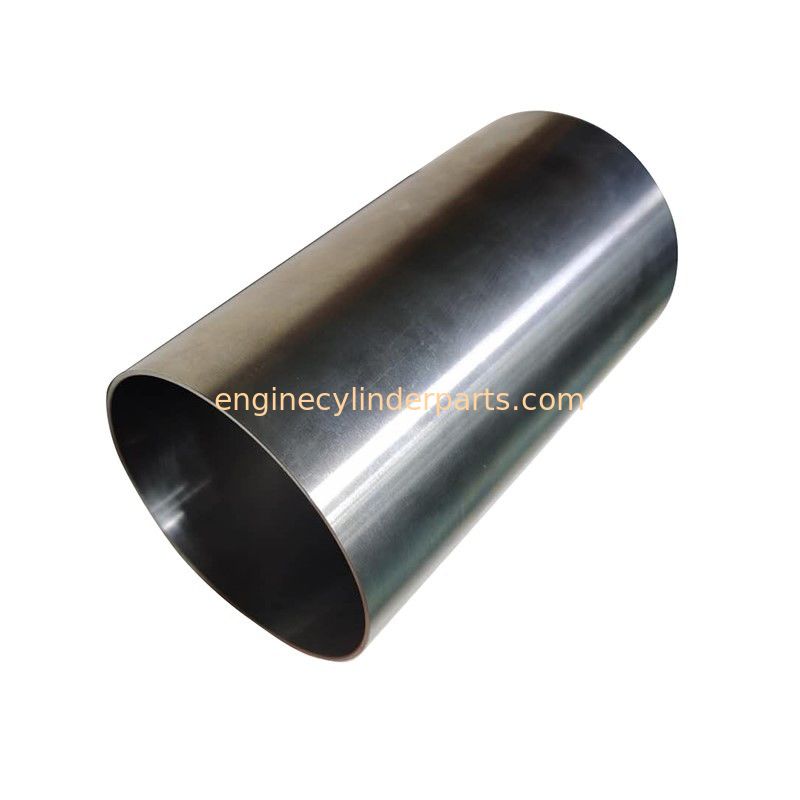

Toyota 5AF Cylinder liner sleeve
OEM Number: 11461-15040
Size: 78.7x82.7x TL 140mm
We manufacture the cylinder liner sleeve from 55mm to 170mm, both Wet cylinder sleeve and Dry cylinder
Sleeves, With exact dimension, accuracy,standards and optimum tolerance.
We can OEM Your Brand, Or produce according to drawings and samples.
QUICK DETAILS
| Name And Description |
Dry type cylinder liner, FF / SF, Cast Iron |
| Place of Origin |
Made In China |
| Engine Model |
Toyota 5AF
|
| Size |
78.7x82.7x TL 140mm |
| Reference number |
11461-15040
|
| Material |
Cast Alloy finished or semi finished |
| Delivery Time |
30 days
|
| Packaging |
Carton box |
| Supply Ability |
50000 Piece per month |
| MOQ |
400PCS |
| Price |
Negotiated |
| Application |
TOYOTA MODELS
|
OTHER MODELS
| TOYOTA LINER SLEEVES |
| AJL190 |
1C |
11461-64010 |
83x87x TL140mm |
|
DRY(SF) |
| AJL191 |
1DZ |
11461-78200 |
86x90x TL 175mm |
ESTIMA,LUCINA ,EMINA CXR11G - 2486CC |
JAPAN FORKLIFT |
| AJL192 |
1HZ |
11461-17010 |
93*98*168*103*5 |
|
|
| AJL193 |
1Z/1KZ |
11461-78300 |
96x100x182.5mm, Collar 106mm |
HIACE,LAND CRUISER ,HILUX SURF - 2982CC |
DRY(SF) |
| AJL194 |
1N |
11461-55010 |
74x78x TL 140mm |
|
DRY |
| AJL195 |
1Z/1KZ |
11461-78300 |
96x100x182.5mm, Collar 106mm |
HI ACE,LAND CRUISER ,HILUX SURF - 2982CC |
DRY |
| AJL196 |
1RZ |
11461-75010 |
86x89.5x TL 170mm |
|
|
| AJL197 |
L-LN40 |
11461-54010 |
89.2x94x100.8x160.5 |
|
DRY(SF) |
| AJL198 |
L |
11461-54010 |
90x94x100.8x160.5 |
|
DRY |
| AJL199 |
11B/BU65 |
11461-56030 |
94x99x104.7x190 |
DYNA,TOYOACE 2977CC |
DRY(SF) |
| AJL200 |
11B |
11461-56060 |
95x99x190 |
DYNA,TOYOACE 2977CC |
DRY |
| AJL201 |
13B |
11461-58020 |
101x106x112x 190.5 |
DYNA COASTER 3431CC |
DRY(SF) |
| AJL202 |
13B |
11461-58020 |
102x106x112x190.5 |
DYNA COASTER 3431CC |
DRY |
| AJL203 |
14B |
11461-58040 |
101.2x106x196 |
DYNA COASTER 3660CC |
DRY(SF) |
| AJL204 |
14B |
11461-58040 |
102x106x196 |
DYNA COASTER 3660CC |
DRY |
| AJL205 |
15B |
11461-58080 |
108X112X197mm |
4104CC |
DRY |
| AJL206 |
2E |
11461-11030 |
73x77x TL132mm |
|
DRY(SF) |
| AJL207 |
2Z |
11461-78700 |
98x101x TL 181.5mm, Collar 107mm |
|
|
| AJL208 |
2C |
11461-64090 |
86x90x TL 154mm |
CARINA ,TAMARAW FX - 1974CC |
DRY(SF) |
| AJL209 |
2J 3g |
11461-48010 |
88x93x TL 183mm, Collar 98mm |
DYNA - 2481CC |
|
| AJL210 |
2D |
11461-77021 |
105x120.7x233 |
TRUCK 6494CC |
WET |
| AJL211 |
22R |
11461-35010 |
92x96x TL 180mm |
|
|
| AJL212 |
2H |
11461-68010 |
90.2x95x100.8x184 |
|
DRY(SF) |
| AJL213 |
2H |
11461-68010 |
91x95x100.8x184 |
|
DRY |
| AJL214 |
2L |
11461-54030~60 |
91.2x96x100.8x160.5 |
CROWN,CHASER,CORONA MARK II - 2466CC |
DRY(SF) |
| AJL215 |
2L |
11461-54030~60 |
92x96x100.8x160.5 |
CROWN,CHASER,CORONA MARK II - 2466CC |
DRY |
| AJL216 |
2Z |
11461-78400 |
97.2x101x107x181 |
|
DRY(SF) |
| AJL217 |
2KD |
11461-30030 |
92x96x TL 165mm |
|
DRY |
| AJL218 |
2B |
11461-57010 |
97.2x102x107.6x190 |
LANDCRUISER -3168CC |
DRY(SF) |
| AJL219 |
2B |
11461-57010 |
98x102x107.8x190 |
LANDCRUISER -3168CC |
DRY |
| AJL220 |
3B |
11461-58010 |
101x106x112x188 |
LANDCRUISER,DYNA COASTER -3431CC |
DRY(SF) |
| AJL221 |
3B OLD |
11461-58010 |
102x106x112x188 |
LANDCRUISER,DYNA COASTER -3431CC |
DRY |
| AJL222 |
4Y |
11461-73020 |
91x95x164.5mm |
|
DRY(SF) |
| AJL223 |
B/BU30 |
11461-56020 |
94x102.1x108x190 |
DYNA,TOYOACE 2977CC |
DRY(SF) |
| AJL224 |
3L |
11461-54100~90 |
95x100.1x107.6x190 |
TOYOACE ,HILUXE,HI ACE VAN LY51 -2779CC |
DRY(SF) |
| AJL225 |
3L |
11461-54100~90 |
96x100x107.5x 190.2 |
TOYOACE ,HILUXE,HI ACE VAN LY51 -2779CC |
DRY |
| AJL226 |
5L |
11461-54120 |
98.7x103.5x190 |
TOYOACE,HILUX,HI ACE VAN LY51 - 2779CC |
DRY(SF) |
| AJL227 |
5L |
11461-54120 |
99.5x103.5x190 |
TOYOACE,HILUX,HI ACE VAN LY51 - 2779CC |
DRY |
| AJL228 |
5AF |
11461-15040 |
78.7x82.7x TL 140mm |
|
DRY |
| AJL229 |
H |
11461-47011 |
88x93x TL 183.5mm, Collar 98mm |
LAND CRUISER ,COSTER -3980CC |
DRY |
ABOUT US
Cylinder Liner sleeve is our key products. We are able to produce both Wet cylinder liner and Dry cylinder
liner. The material include cast iron and steel. The bore size from 55mm to 170mm. The applications inclu
-de: compressors, generators, cars, trucks, heavy duty machines, and marine engines.
