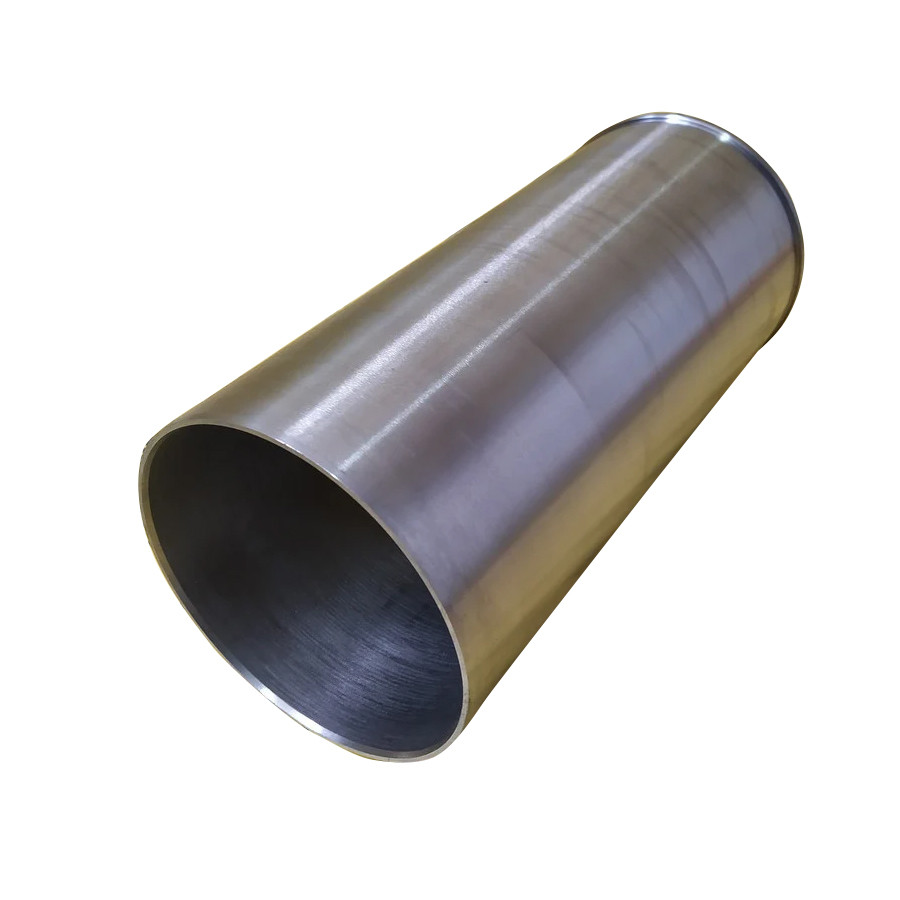

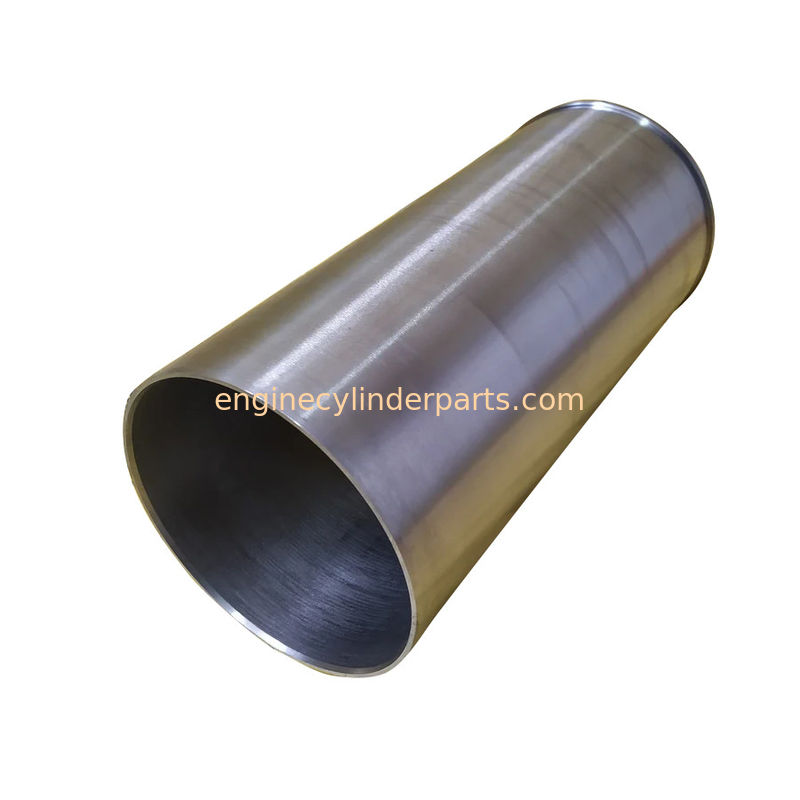

Finished Cylinder Liner For Toyota Hiace 1Z 1KZ Engine 11461-78300

Minimum Order Quantity : 400PCS Price : USD1-8 Per Piece
Packaging Details : CARTON BOX Delivery Time : 30 days
Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal Supply Ability : 50000PCS per Month
Place of Origin: CHINA Brand Name: OEM
Certification: SGS Model Number: AJL195

Detail Information

Material: Cast Iron OEM: 11461-78300
Engine Make: Toyota Engine Code: 1Z 1KZ
Size: 96x100x182.5mm, Collar 106mm Warranty: 1 Years
Name: Cylinder Liner Sleeve Type: Dry Finished Cylinder Liner

Product Description

Finished Cylinder Liner For Toyota Hiace 1Z 1KZ Engine 11461-78300

We manufacture the cylinder liner sleeve from 55mm to 170mm, both Wet cylinder sleeve and Dry cylinder
Sleeves, With exact dimension, accuracy,standards and optimum tolerance.
We can OEM Your Brand, Or produce according to drawings and samples.

Quick Details:
Name And Description   Cylinder liner for Toyota
Place of Origin Made In China
Engine Model

1Z 1KZ

Size Finished cylinder liner 96x100x182.5mm, Collar 106mm
Reference number

11461-78300

Material Cast Alloy
Delivery Time

30 days

Packaging Carton box
Supply Ability 10000 Piece per month
MOQ 400PCS
Price Negotiated
Application

HIACE,LAND CRUISER ,HILUX SURF - 2982CC

Finished Cylinder Liner For Toyota Hiace 1Z 1KZ Engine 11461-78300 0



Other Models:

TOYOTA LINER SLEEVES
AJL190 1C 11461-64010 83x87x TL140mm   DRY(SF)
AJL191 1DZ 11461-78200 86x90x TL 175mm ESTIMA,LUCINA ,EMINA CXR11G - 2486CC JAPAN FORKLIFT
AJL192 1HZ 11461-17010 93*98*168*103*5
AJL193 1Z/1KZ 11461-78300 96x100x182.5mm, Collar 106mm HIACE,LAND CRUISER ,HILUX SURF - 2982CC DRY(SF)
AJL194 1N 11461-55010 74x78x TL 140mm   DRY
AJL195 1Z/1KZ 11461-78300 96x100x182.5mm, Collar 106mm HI ACE,LAND CRUISER ,HILUX SURF - 2982CC DRY
AJL196 1RZ 11461-75010 86x89.5x TL 170mm
AJL197 L-LN40 11461-54010 89.2x94x100.8x160.5   DRY(SF)
AJL198 L 11461-54010 90x94x100.8x160.5   DRY
AJL199 11B/BU65 11461-56030 94x99x104.7x190 DYNA,TOYOACE 2977CC DRY(SF)
AJL200 11B 11461-56060 95x99x190 DYNA,TOYOACE 2977CC DRY
AJL201 13B 11461-58020 101x106x112x 190.5 DYNA COASTER 3431CC DRY(SF)
AJL202 13B 11461-58020 102x106x112x190.5 DYNA COASTER 3431CC DRY
AJL203 14B 11461-58040 101.2x106x196 DYNA COASTER 3660CC DRY(SF)
AJL204 14B 11461-58040 102x106x196 DYNA COASTER 3660CC DRY
AJL205 15B 11461-58080 108X112X197mm 4104CC DRY
AJL206 2E 11461-11030 73x77x TL132mm   DRY(SF)
AJL207 2Z 11461-78700 98x101x TL 181.5mm, Collar 107mm
AJL208 2C 11461-64090 86x90x TL 154mm CARINA ,TAMARAW FX - 1974CC DRY(SF)
AJL209 2J 3g 11461-48010 88x93x TL 183mm, Collar 98mm DYNA - 2481CC
AJL210 2D 11461-77021 105x120.7x233 TRUCK 6494CC WET
AJL211 22R 11461-35010 92x96x TL 180mm
AJL212 2H 11461-68010 90.2x95x100.8x184   DRY(SF)
AJL213 2H 11461-68010 91x95x100.8x184   DRY
AJL214 2L 11461-54030~60 91.2x96x100.8x160.5 CROWN,CHASER,CORONA MARK II - 2466CC DRY(SF)
AJL215 2L 11461-54030~60 92x96x100.8x160.5 CROWN,CHASER,CORONA MARK II - 2466CC DRY
AJL216 2Z 11461-78400 97.2x101x107x181   DRY(SF)
AJL217 2KD 11461-30030 92x96x TL 165mm   DRY
AJL218 2B 11461-57010 97.2x102x107.6x190 LANDCRUISER -3168CC DRY(SF)
AJL219 2B 11461-57010 98x102x107.8x190 LANDCRUISER -3168CC DRY
AJL220 3B 11461-58010 101x106x112x188 LANDCRUISER,DYNA COASTER -3431CC DRY(SF)
AJL221 3B OLD 11461-58010 102x106x112x188 LANDCRUISER,DYNA COASTER -3431CC DRY
AJL222 4Y 11461-73020 91x95x164.5mm   DRY(SF)
AJL223 B/BU30 11461-56020 94x102.1x108x190 DYNA,TOYOACE 2977CC DRY(SF)
AJL224 3L 11461-54100~90 95x100.1x107.6x190 TOYOACE ,HILUXE,HI ACE VAN LY51 -2779CC DRY(SF)
AJL225 3L 11461-54100~90 96x100x107.5x 190.2 TOYOACE ,HILUXE,HI ACE VAN LY51 -2779CC DRY
AJL226 5L 11461-54120 98.7x103.5x190 TOYOACE,HILUX,HI ACE VAN LY51 - 2779CC DRY(SF)
AJL227 5L 11461-54120 99.5x103.5x190 TOYOACE,HILUX,HI ACE VAN LY51 - 2779CC DRY
AJL228 5AF 11461-15040 78.7x82.7x TL 140mm   DRY
AJL229 H 11461-47011 88x93x TL 183.5mm, Collar 98mm LAND CRUISER ,COSTER -3980CC DRY



About US:

Cylinder Liner sleeve is our key products. We are able to produce both Wet cylinder liner and Dry cylinder

liner. The material include cast iron and steel. The bore size from 55mm to 170mm. The applications inclu

-de: compressors, generators, cars, trucks, heavy duty machines, and marine engines.

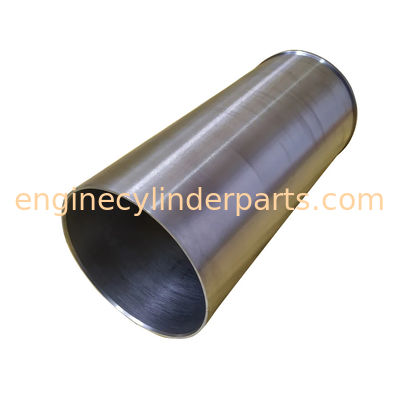

Finished Cylinder Liner For Toyota Hiace 1Z 1KZ Engine 11461-78300 1

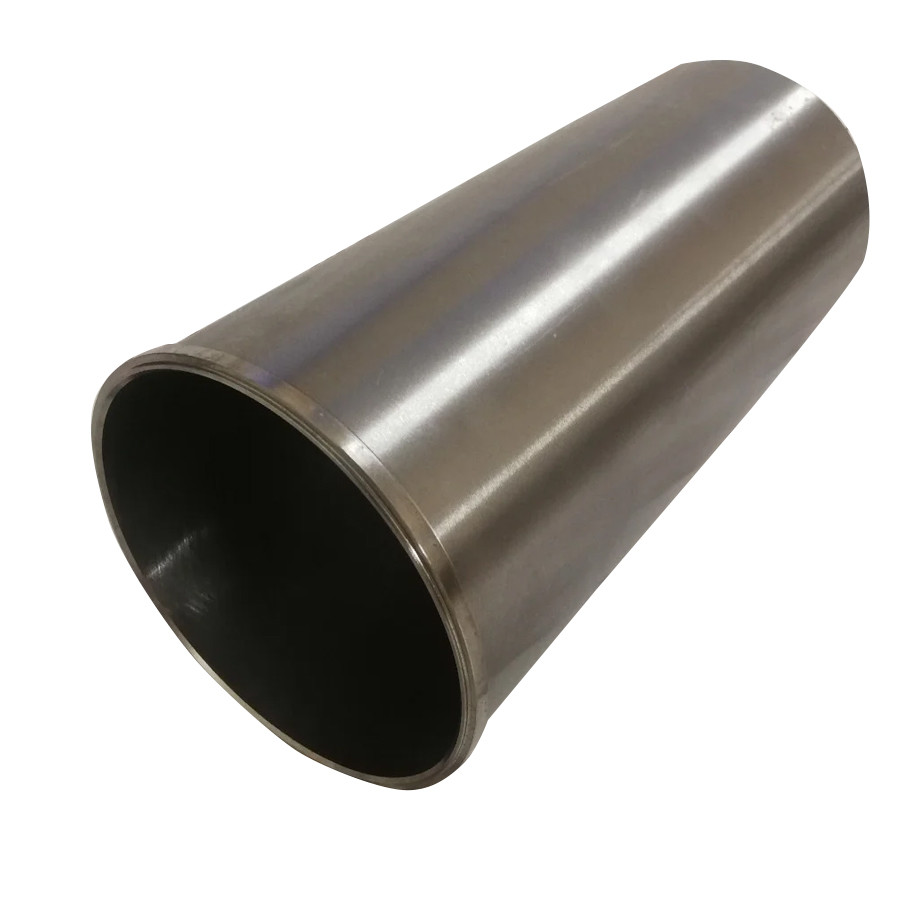

Finished Cylinder Liner For Toyota Hiace 1Z 1KZ Engine 11461-78300 2

FAQ





Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral Carton with pallet or non-fumigation plywoodcase.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the bala-nce.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample

cost and the courier cost.

Q5. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,

no matter where they
come from.

Professional Sales online to answer your question timely within 12 hours.
Please don't hesitate to contact us for more information about ENGINE AND SPARES.
Warmly welcome you to visit our ofice and factory!
Hope we can set up mutually benefically business relationship.
